802.11ac Wave 2 Aironet 1815w Cisco Wireless Access Point

Name: 80211ac Wave 2 Aironet 1815w Cisco Wireless Access Point
Brand: Cisco
Price: 100 USD

Brand Name : Cisco

Model Number : AIR-AP1815W-H-K9C

Place of Origin : USA

MOQ : 1 unit

Price : $100-$120

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 200 Piece/Pieces per Week

Delivery Time : 5-8 work days

Packaging Details : Neutral packing/Original packing

Brand : Cisco

Model number : AIR-AP1815W-H-K9C

Warranty : one year

Frequency Range : 2.4G & 5G dual band

Product Type : Aironet 1815w

MIMO : 3*3

Contact Now

Cisco Access Point AIR-AP1815W-H-K9C AIR-AP1815W-Q-K9C dual Band Aironet 1815w 802.11ac Wave 2 AIR-AP1815w-x-K9C

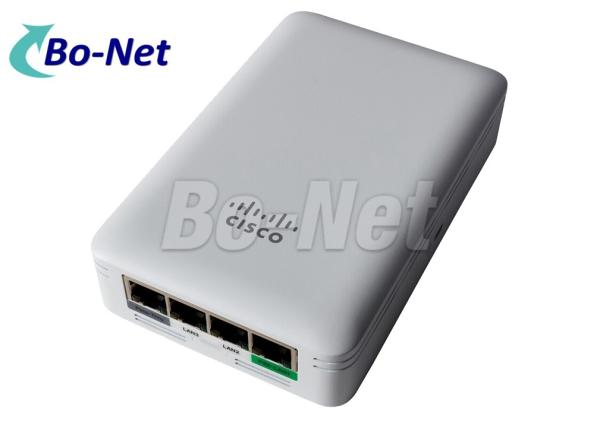

The Aironet® 1815w Access Point offers a compact, wall plate–mountable access point, ideal for hospitality, cruise ships, residential halls, or other multiple-dwelling-unit deployments. Packing 802.11ac Wave 2 wireless standards support and Gigabit Ethernet wired connectivity into a sleek device, the 1815w is built to take full advantage of existing cabling infrastructure while blending into the visual footprint. This combination provides best-in-class performance while reducing total cost of
ownership.

Increased wireless performance
 The Aironet 1815w access point supports the latest 802.11ac Wave 2 standard for higher performance, greater access, and higher-density networks. With simultaneous dual radios and dual band with 802.11ac Wave 2 MU-MIMO functionality, this access point can handle the increasing number of high-bandwidth devices that will soon become a common part of the network.
 Wired access
 The 1815w allows wired access via a single RJ-45 10/100/1000 auto detection port. It supports full operation modes using PoE 802.3af power. The 1815w comes with three local Gigabit Ethernet ports, one uplink Gigabit Ethernet port, and one passive pass-through RJ-45 port, allowing for a variety of connections.
 	 			Item
 			Specification

 			Authentication and security
 			● Advanced Encryption Standard (AES) for Wi-Fi Protected Access 3 (WPA3), WPA2, WPA
 			● 802.1X, RADIUS Authentication, Authorization and Accounting (AAA)
 			● 802.11r
 			● 802.11i

 			Software
 			● Cis Unified Wireless Network Software with AireOS Wireless Controllers Release 8.4.100.0/84 CCO or later
 			● Cis Mobility Express

 			Supported WLAN controllers
 			● Cis 2500 Series Wireless Controllers, Cis 3500 Series Wireless Controllers, Cis Wireless Controller Module for ISR G2, Cis Wireless Services Module 2 (WiSM2) for Catalyst ® 6500 Series Switches, Cis 5500 Series Wireless Controllers, Cis Flex ® 7500 Series Wireless Controllers, Cis 8500 Series Wireless Controllers, Cis Catalyst ® 9800 Series Wireless Controllers
 			● Cis Mobility Express

 			Maximum clients
 			● Maximum number of associated wireless clients: 200 per Wi-Fi radio, in total 400 clients per access point

 			802.11ac
 			● 2x2 single-user/multiuser MIMO with two spatial streams
 			● Maximal Ratio Combining (MRC)
 			● 20-, 40-, and 80-MHz channels
 			● PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz)
 			● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx)
 			● 802.11 Dynamic Frequency Selection (DFS)
 			● Cyclic Shift Diversity (CSD) support

 			Ethernet ports
 			● Authentication with 802.1X or MAC filtered
 			● Dynamic VLAN or per port
 			● Traffic locally switched or tunneled back to wireless LAN controller

 			Bluetooth (future availability)
 			● Integrated Bluetooth 4.1 (including BLE) radio
 			● Maximum transmit power: 4 dBm
 			● Antenna gain: 2 dBi

 			Integrated antennas
 			● 2.4 GHz, gain 2 dBi
 			● 5 GHz, gain 3 dBi

 			Interfaces
 			● 1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE)
 			● Management console port (4-pin connector)
 			● Three 10/100/1000BASE-T ports (local Ethernet ports), including one PoE out port:
 			◦ PoE out provides 802.3af (class 0) when access point is powered by 802.3at, or no output when powered by 802.3af
 			● One passive pass-through port RJ-45 (back to bottom)

 			Indicators
 			● Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors

 			Dimensions(W x L x H)
 			● Access point (without mounting bracket): 3.5 x 5.5 x 1.25 in (89 x 140 x 31.5 mm)

 			Weight
 			● Access point without mounting bracket or any other accessories: 10 oz (280 g)

 			System
 			● 1 GB DRAM
 			● 256 MB flash
 			● 710 MHz quad-core

 			Powering options
 			● 802.3af/at Ethernet switch
 			● Optional Cisco power injectors (AIR-PWRINJ5=, AIR-PWRINJ6=)

 			Power draw
 			● 8.5W (maximum, without PoE out)

 			Physical security
 			● Torx security screw, included with the access point
 			● Kensington lock slot to lock device to mounting bracket.

 			Mounting
 			● Included with the access point: mounting bracket AIR-AP-BRACKET-W3

 			Accessories
 			● Mounting bracket: AIR-AP-BRACKET-W3= (available as spare)
 			● Spacer kit: AIR-AP1815W-KIT= (sold separately), includes spacer and RJ-45 jumper cable
 			● Physical security kit: AIR-SEC-50= (sold separately), with 50 pcs. security screws used to secure the access point onto
 			wall-mounting bracket, 20 pcs. RJ-45 caps and 2 pcs. unlock keys used to block physical access to Ethernet ports
