24 Port Huawei S5720 Gigabit POE Switch S5720-28P-PWR-LI-AC

Product Categories
Shenzhen Bo-Net Technology Co., Ltd.
Contact Now

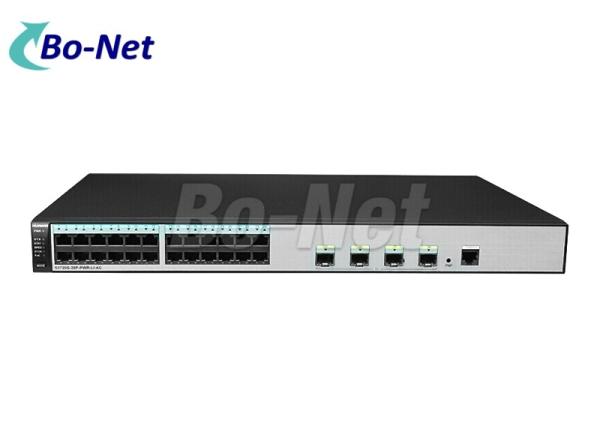

24 Port Huawei S5720 Gigabit POE Switch S5720-28P-PWR-LI-AC

  • 1
  • 2

Brand Name : huawei

Model Number : S5720-28P-PWR-LI-AC

Place of Origin : USA

MOQ : 1 Unit

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200 pcs per week

Delivery Time : 3~5 working days

Packaging Details : Original packing

Brand : huawei

Product name : S5720-28P-PWR-LI-AC

Device type : 24 Port Gigabit poe Switch

Ports : 24 poe+ 10/100/1000BASE-T ports

Uplink port : 4 SFP+ ports

Product type : Huawei S5720 Switch

Power Consumption : 370W

Contact Now

S5720-28P-PWR-LI-AC Huawei S5720 24-Port Gigabit POE Switch+ 4 SFP Port

24 Port Huawei S5720 Gigabit POE Switch S5720-28P-PWR-LI-AC

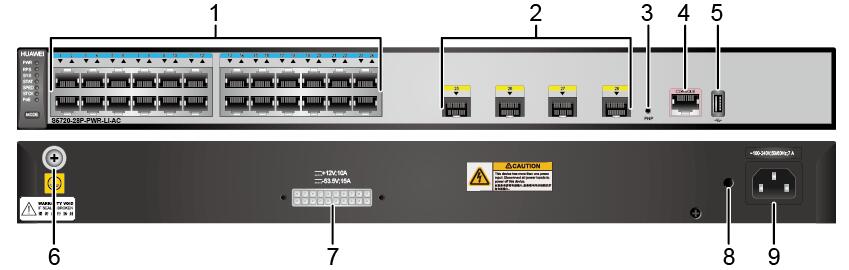

1 Twenty-four PoE+ 10/100/1000BASE-T ports 2

Four 1000BASE-X ports

Applicable modules:
  • GE optical module
  • GE-CWDM optical module
  • GE-DWDM optical module
  • GE copper module (works at 10 Mbit/s, 100 Mbit/s, or 1000 Mbit/s)
  • Stack optical module (only used for stack connection)
  • 1 m, 3 m, 5 m, and 10 m SFP+ high-speed copper cables (only used for stack connection)
  • 3 m and 10 m AOC cables (only used for stack connection)
  • 0.5 m and 1.5 m SFP+ dedicated stack copper cables (used for zero-configuration stacking, supported in V200R011C10 and later versions)
  • H87MMA5671A2 GPON optical module (applicable in V200R012C00 and later versions)
A license can be activated on the switch to increase the speed of the four optical ports to 10 Gbit/s. Applicable modules:
  • GE optical module
  • GE-CWDM optical module
  • GE-DWDM optical module
  • GE copper module (only 1000 Mbit/s supported)
  • 10GE SFP+ optical module (OSXD22N00 not supported)
  • 10GE-CWDM optical module
  • 10GE-DWDM optical module
  • 1 m, 3 m, 5 m, and 10 m SFP+ high-speed copper cables
  • 3 m and 10 m AOC cables
  • 0.5 m and 1.5 m SFP+ dedicated stack copper cables (used for zero-configuration stacking, supported in V200R011C10 and later versions)
  • H87MMA5671A2 GPON optical module (applicable in V200R012C00 and later versions)
NOTE:

If a port uses a GPON optical module, other 1000BASE-X optical ports cannot be used.
3

One PNP button

NOTICE:

Applicable in V200R012C00 and later versions:

To restore the factory settings and reset the switch, hold down the button for at least 6 seconds.

To reset the switch, press the button.

Resetting the switch will cause service interruption. Exercise caution when you press the PNP button.

 4 One console port
5 One USB port 6

Ground screw

NOTE:
It is used with a ground cable.
7

RPS socket

NOTE:

It is used with an RPS cable, which is not hot swappable.

 8

Jack for AC power cable locking strap

NOTE:
The AC power cable locking strap is not delivered with the switch.
9

AC socket

NOTE:

It is used with an AC power cable.

 - -

Product Name
Huawei S5720-28P-PWR-LI-AC Switch
Uplink Interfaces
 24 10/100/1000 base-t Ethernet ports +4 gigabit SFPS
Switch Capacity
336Gbps
Packet forwarding rate
51Mbps
MAC Address Table
16K
Dimensions (W x D x H)
442×220×43.6mm
Rated voltage range
100-240V AC,50/60Hz
Relative humidity
5%-95% RH
Operating temperature
0-45℃
Power Consumption
370W

24 Port Huawei S5720 Gigabit POE Switch S5720-28P-PWR-LI-AC24 Port Huawei S5720 Gigabit POE Switch S5720-28P-PWR-LI-AC24 Port Huawei S5720 Gigabit POE Switch S5720-28P-PWR-LI-AC24 Port Huawei S5720 Gigabit POE Switch S5720-28P-PWR-LI-AC

24 Port Huawei S5720 Gigabit POE Switch S5720-28P-PWR-LI-AC
