930W 48 Port S5700-52C-PWR-EI POE Cisco Gigabit Switch

Product Categories
Shenzhen Bo-Net Technology Co., Ltd.
Contact Now

930W 48 Port S5700-52C-PWR-EI POE Cisco Gigabit Switch

Brand Name : huawei

Model Number : S5700-52C-PWR-EI

Place of Origin : USA

MOQ : 1 Unit

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200 pcs per week

Delivery Time : 3~5 working days

Packaging Details : Original packing

Brand : huawei

Product name : S5700-52C-PWR-EI

Device type : 48 Port Gigabit POE Switch

Ports : 48 PoE+ 10/100/1000BASE-T ports

console port : 1

Switching capacity : 256 Gbit/s

POE POWER : 930W

Product type : Huawei S5700 POE Switch

Contact Now

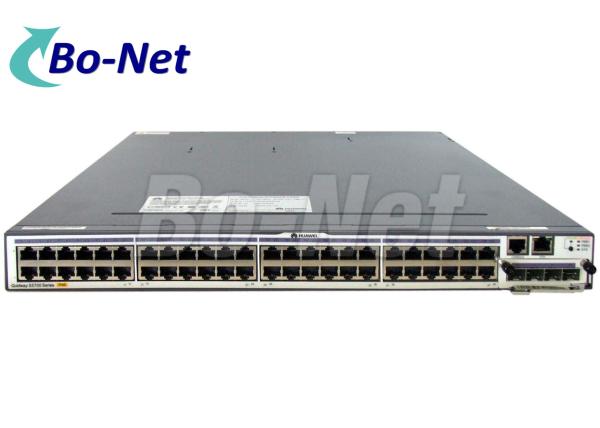

Huawei S5700-52C-PWR-EI S5700 Switch 48 Port Gigabit POE Network Switch

930W 48 Port S5700-52C-PWR-EI POE Cisco Gigabit Switch

1 Forty-eight PoE+ 10/100/1000BASE-T ports 2 One console port
3 One ETH management port 4

Front card slot

NOTE:

Card supported:

· ES5D000G4S01 (4-Port GE SFP Front Optical Interface Card)

· ES5D000X2S00 (2-Port 10GE SFP+ Front Optical Interface Card)

· ES5D000X4S01 (4-Port 10GE SFP+ Front Optical Interface Card)
5

ESD jack

NOTE:

Before installing or maintaining a switch, wear an ESD wrist strap and insert the other end of the ESD wrist strap into this ESD jack.

 6

Rear card slot

NOTE:

Card supported:

· ES5D00ETPC00 (Stack Rear Card)

· ES5D00ETPB00 (Extended Rear Card)
7

Fan slot

NOTE:

Applicable fan module:

CX7E1FANA fan module

 8

Power module slot 2

NOTE:

Applicable power modules:

· 250 W AC PoE power module

· 500 W AC PoE power module
9

Power module slot 1

NOTE:

Applicable power modules:

· 250 W AC PoE power module

· 500 W AC PoE power module

Item Description
Memory (RAM) 256 MB
Flash 32 MB
Mean time between failures (MTBF) 44.8 years when a 2-port 10GE interface card is configured, 66.8 years when a 4-port GE front card is configured, 29.89 years when a 4x10GE front card is configured
Mean time to repair (MTTR) 2 hours
Availability > 0.99999
Service port surge protection Common mode: ±1 kV
Power supply surge protection ±2 kV in differential mode, ±4 kV in common mode
Dimensions (H x W x D) 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.)
Weight

· Empty: ≤ 5 kg (11.02 lb)

· Fully configured: ≤ 8.5 kg (18.74 lb)
Stack ports Two stack ports available on each stack card
RPS Not supported
PoE Supported
Rated voltage range 100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range 90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum power consumption (100% throughput, 100% PoE loads, full speed of fans) 930 W (system power consumption: 190 W, PoE: 740 W)
Operating temperature 0°C to 50°C (32°F to 122°F)
Storage temperature -40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power) < 45 dB(A)
Relative humidity 5% to 95%, noncondensing
Operating altitude 0-5000 m (0-16404 ft.)
Certification

· EMC certification

· Safety certification

· Manufacturing certification
Part number 02352366
